Murphy bed with desk and shelf Specifications
| Item | Specification |
| Product Name | Vertical Murphy Wall Bed Hardware Kit with Integrated Desk |
| Frame Material | High-Strength Powder-Coated Steel |
| Slat Material | Flexible Birch / Poplar Plywood Slats |
| Lifting Mechanism | Heavy-Duty Gas Strut Pistons / Pivot Hinge Plates |
| Desk & Leg System | Synchronized Self-Leveling Desk & Auto-Deploying Legs |
| Available Sizes | Single, Twin, Full, Queen (Custom dimensions available) |
| Load Capacity | Up to 600–800 lbs (depending on size & piston rating) |
| Mounting Type | Cabinet / Wall Box Mounted |
| Color Finish | Metallic Grey Frame with Natural Wood Slats |
Product Details

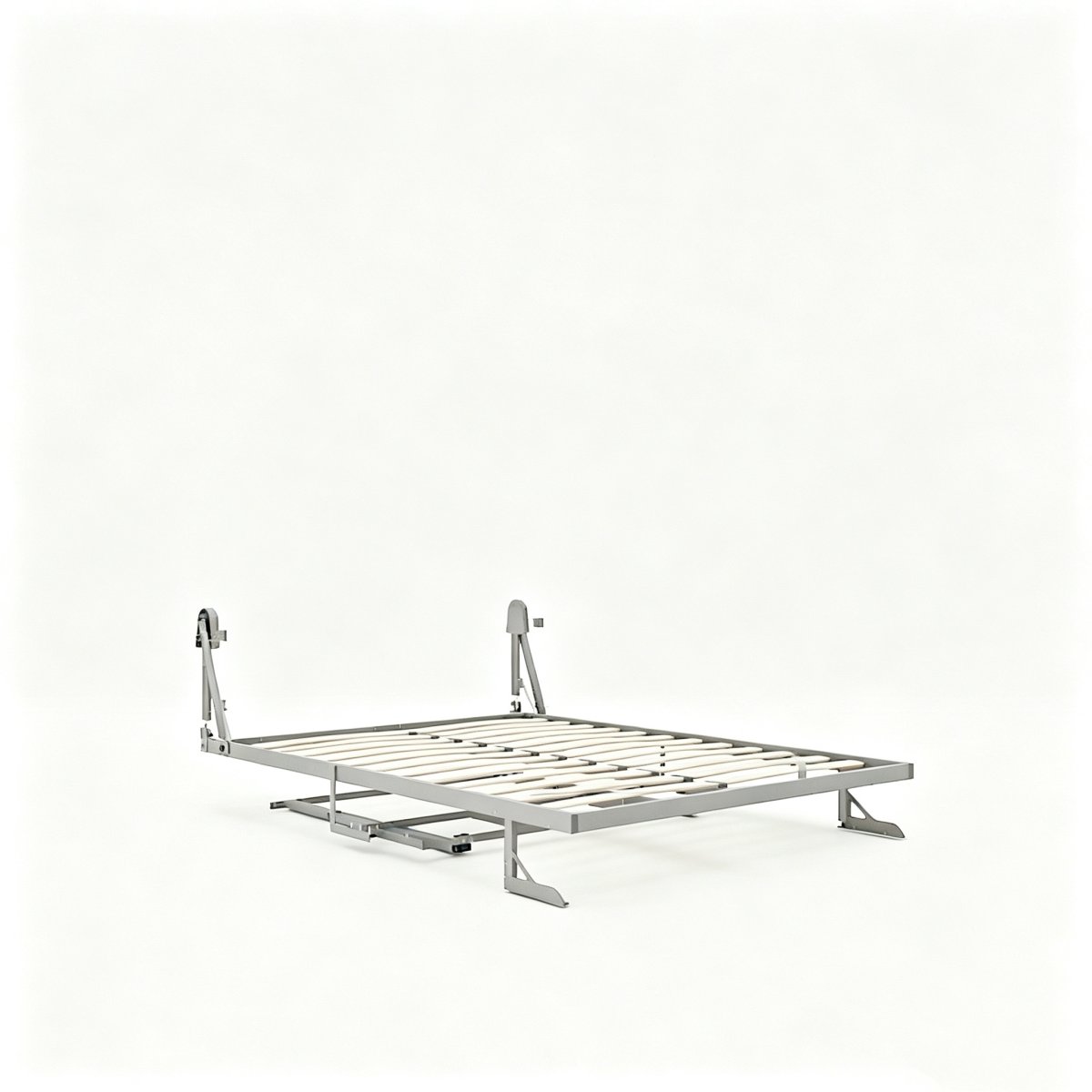

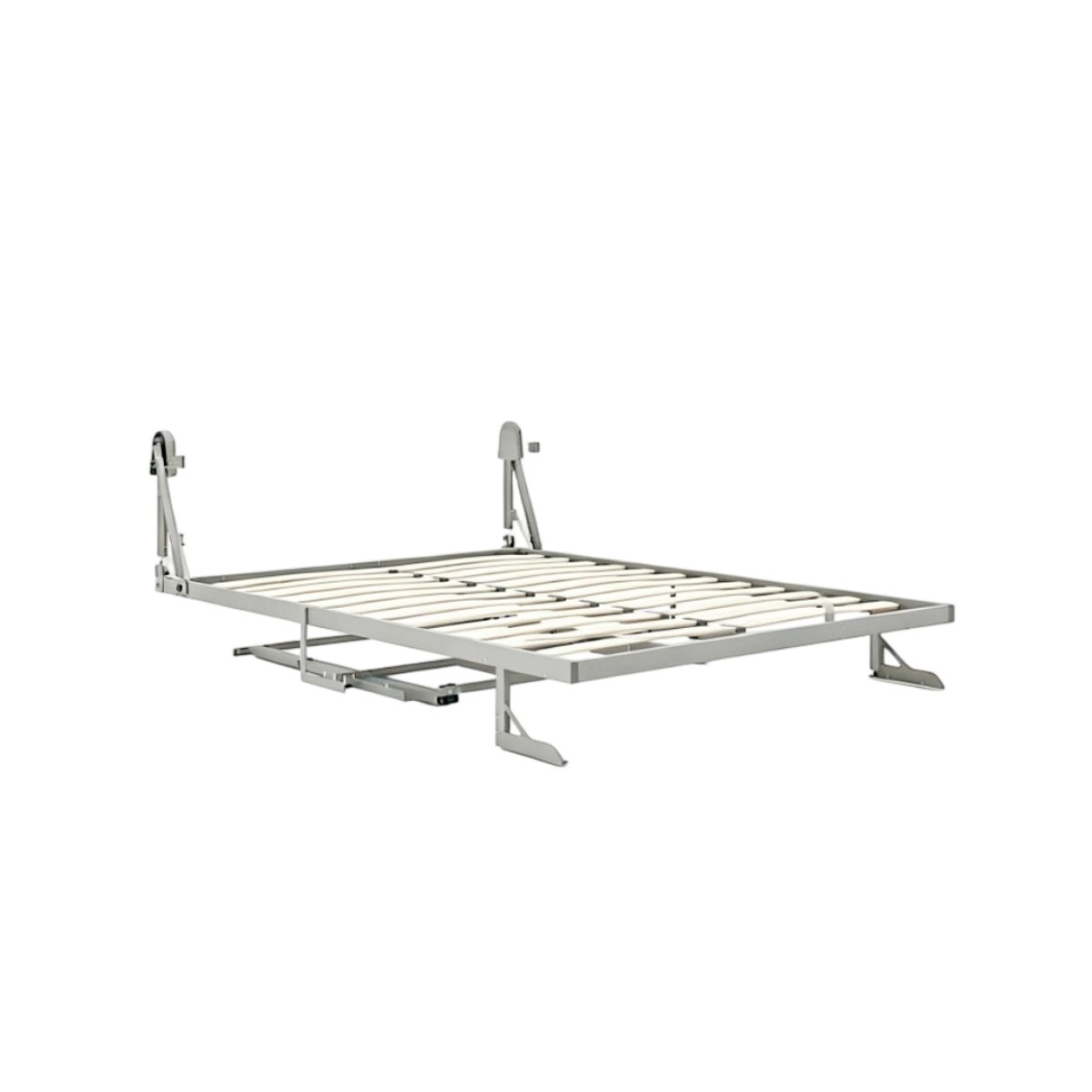

Steel frame mechanism: Durable Murphy bed steel linkages ensure the tabletop remains level during the arc-like lifting and lowering motion.
High-pressure gas piston: Precision-tuned assist gas spring designed for thousands of smooth opening and closing cycles.
Self-deploying desk: Murphy bed front desk lower smoothly during unfolding, resting firmly on the ground.
Mattress securing system: Side-frame fasteners ensure the mattress remains stable during wall bed movement and vertical storage.
Key Features of a Murphy bed with desk and shelf
Integrated Desk-Bed Linkage Mechanism: The desktop remains horizontal throughout the Murphy bed opening and closing process, ensuring laptops, books, and office supplies stay securely in place.
Synchronized Self-Leveling Support Legs: Front support shelf legs automatically extend when the Murphy bed is lowered, providing stable floor support without the need for manual adjustment.
Gas Strut and Counterweight Lift System: Industrial-grade gas struts support the wall bed weight of the mattress, enabling smooth, effortless, and safe one-handed operation.
Flexible, Contoured Wooden Slat Base: Durable, curved slats provide excellent lumbar support, ensuring even weight distribution and maintaining mattress breathability.
Robust Powder-Coated Murphy Steel Bed Frame: Constructed from hidden high-strength steel profiles and secure mounting plates to ensure ultimate stability.
Why choose a Murphy wall bed?
Maximizing space for Murphy bed : Instantly transform a bedroom into a fully functional office or study area.
Optimizing small interiors: Combines a desk, bed frame, and vertical storage unit into a single wall-mounted solution.
Increasing property value: Enhances the functionality of micro-apartments, standard flats, and multi-purpose guest rooms.
Benefits of Murphy wall beds
Convenient desk use: No need to clear your workspace—your computer, documents, and lamp can stay on the shelf without being moved.
Comfortable sleep: Say goodbye to the uncomfortable seating surfaces of typical sofa beds; enjoy excellent support thanks to an ergonomic slatted base and a real mattress.
Easy daily operation: Balanced assist mechanisms (gas-powered) take the weight of the structure, ensuring smooth, effortless opening and closing.
FAQ
Q1: Can I leave items on the desk surface when lowering the Murphy bed?
A: Yes! The desk uses a parallelogram mechanism that keeps the desktop level during movement, allowing you to safely leave laptops, books, and small accessories on it.
Q2: How do the front support legs work?
A: The wall bed support legs are integrated with the movement of the murphy bed frame. As the wall bed is lowered, the legs automatically drop and lock into a vertical position, resting on the floor.
Q3: Does raising or lowering the Murphy bed require a lot of effort?
A: Not at all. Balanced gas struts offset the weight of the mattress, frame, and desk components, enabling smooth, controlled operation with minimal effort.
Q4: Does this wall bed system require a box spring?
A: A box spring is not required for Murphy wall bed. The flexible slatted base provides direct support and is compatible with memory foam, latex, spring, and hybrid mattresses.
Q5: Does the kit include the wooden cabinetry and the desk surface?
A: This wall bed is a complete hardware and slatted base kit (including the steel bed frame, desk mechanism, gas spring, support legs, and mounting brackets). The outer cabinetry and wooden desktop are typically fabricated by furniture manufacturers or carpenters.
Q6: How is the mechanism securely attached to the wall?
A: The side pivot plates are securely mounted to the inner side walls of the enclosure, while hidden bed top mounting brackets permanently anchor the structure to the wall's structural elements, preventing tipping.
Q7: Will the mattress fall out when the Murphy wall bed is stored in the vertical position inside the enclosure?
A: No. Built-in frame retention bars and mattress securing straps ensure it remains flat against the hidden bed frame during storage.
Q8: Do you offer customization—such as frame dimensions and gas strut force—as part of your OEM/ODM services?
A: Yes. We provide comprehensive OEM/ODM services for business clients, including frame dimension customization, steel surface finishing, gas strut force specifications (in Newtons), and bulk packaging solutions.
