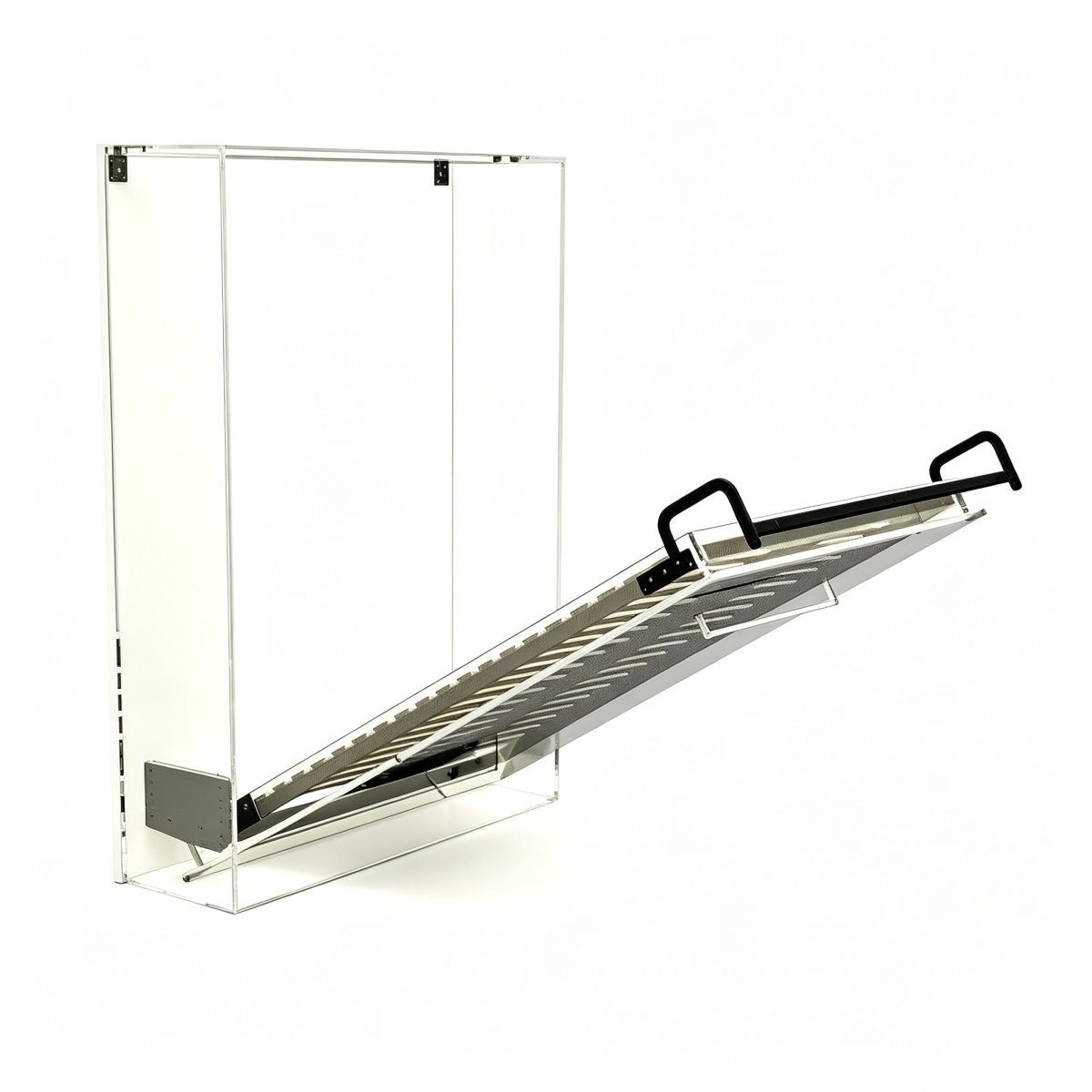

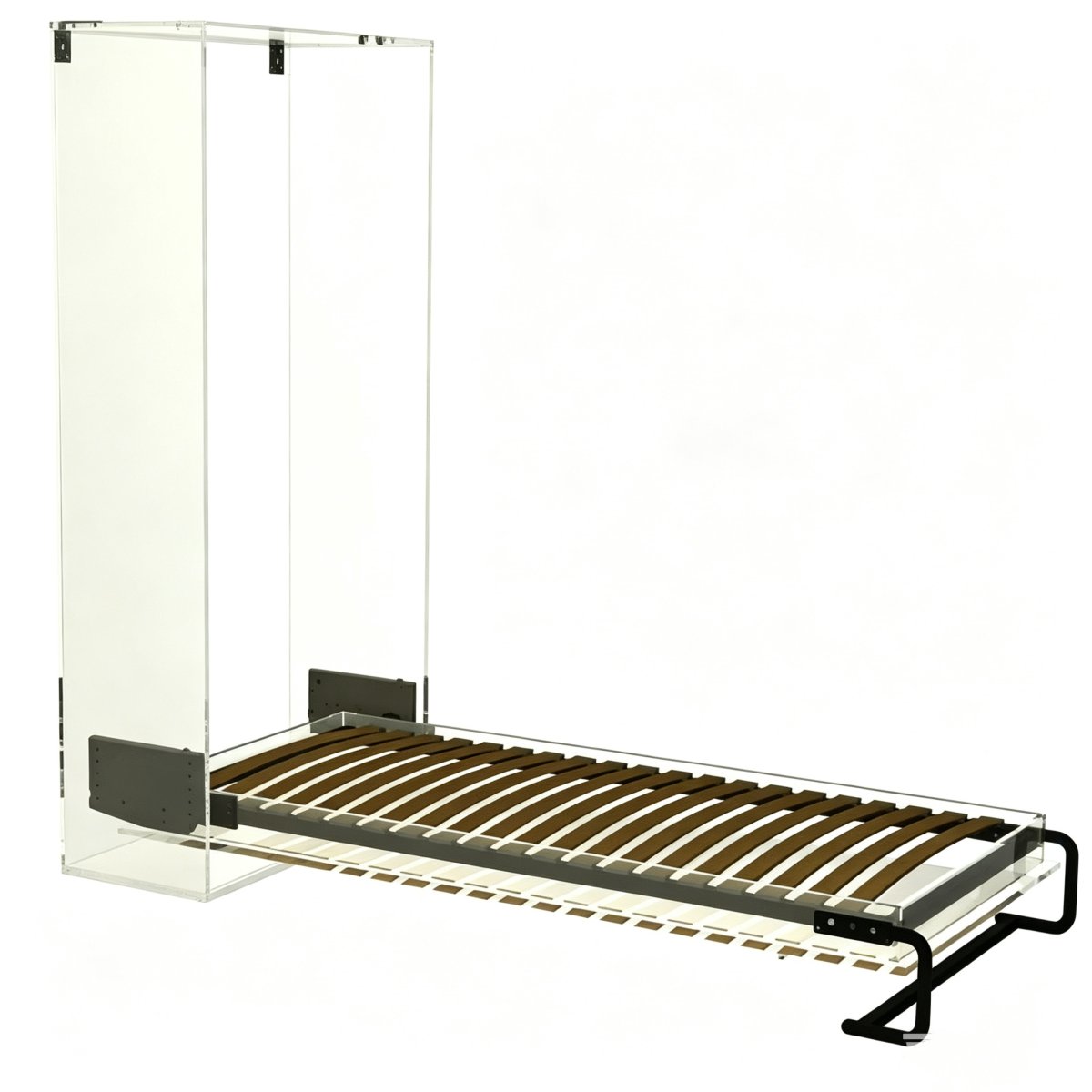

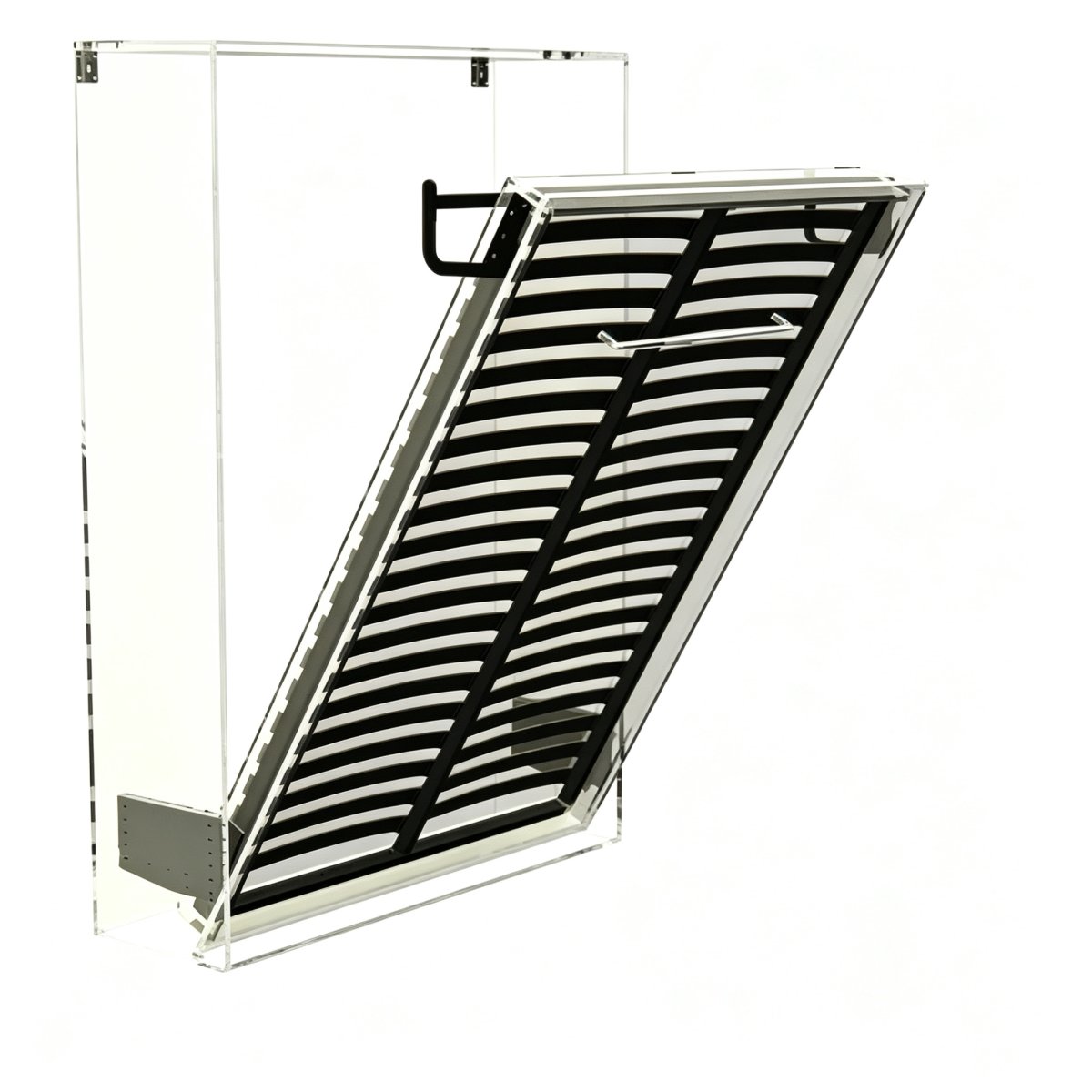

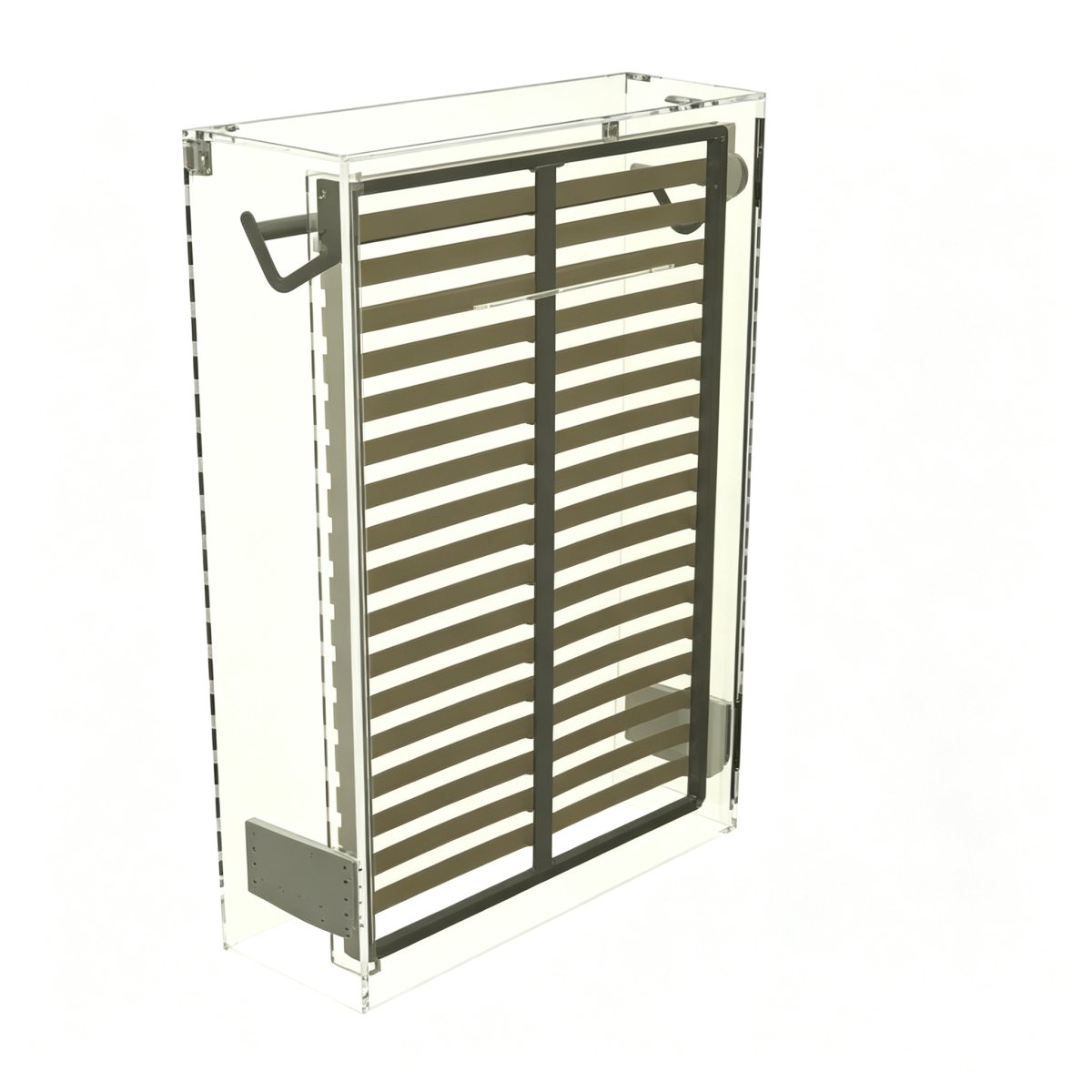

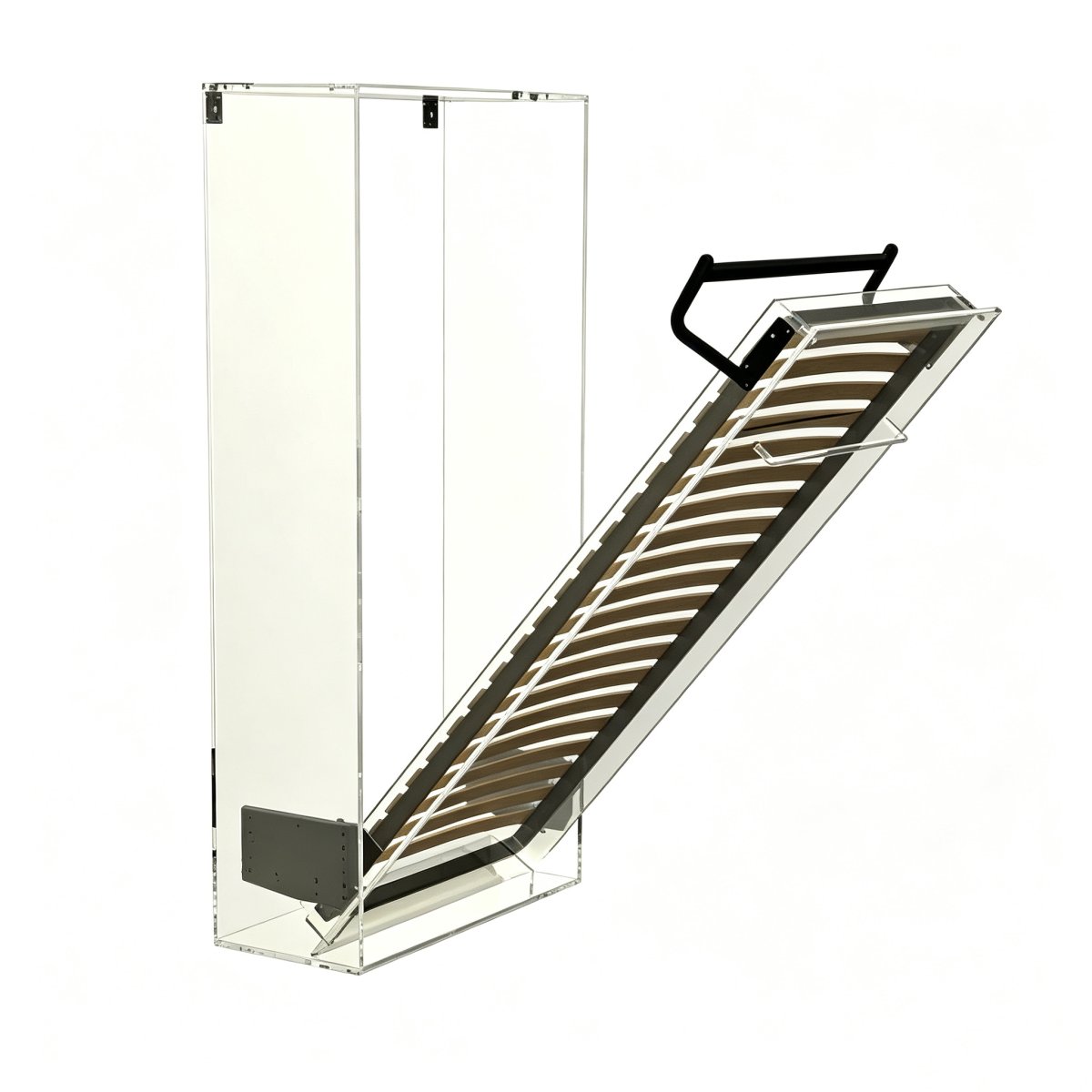

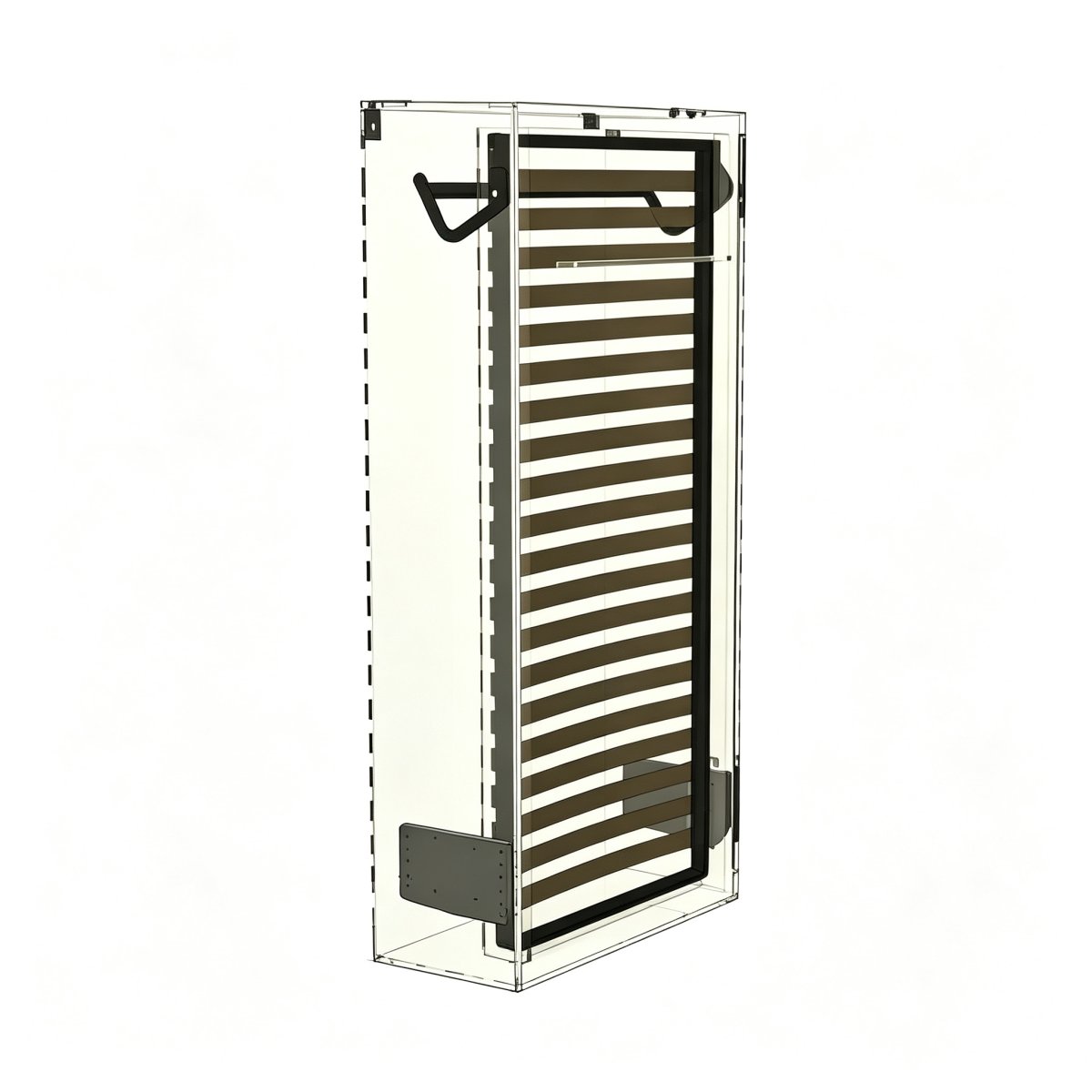

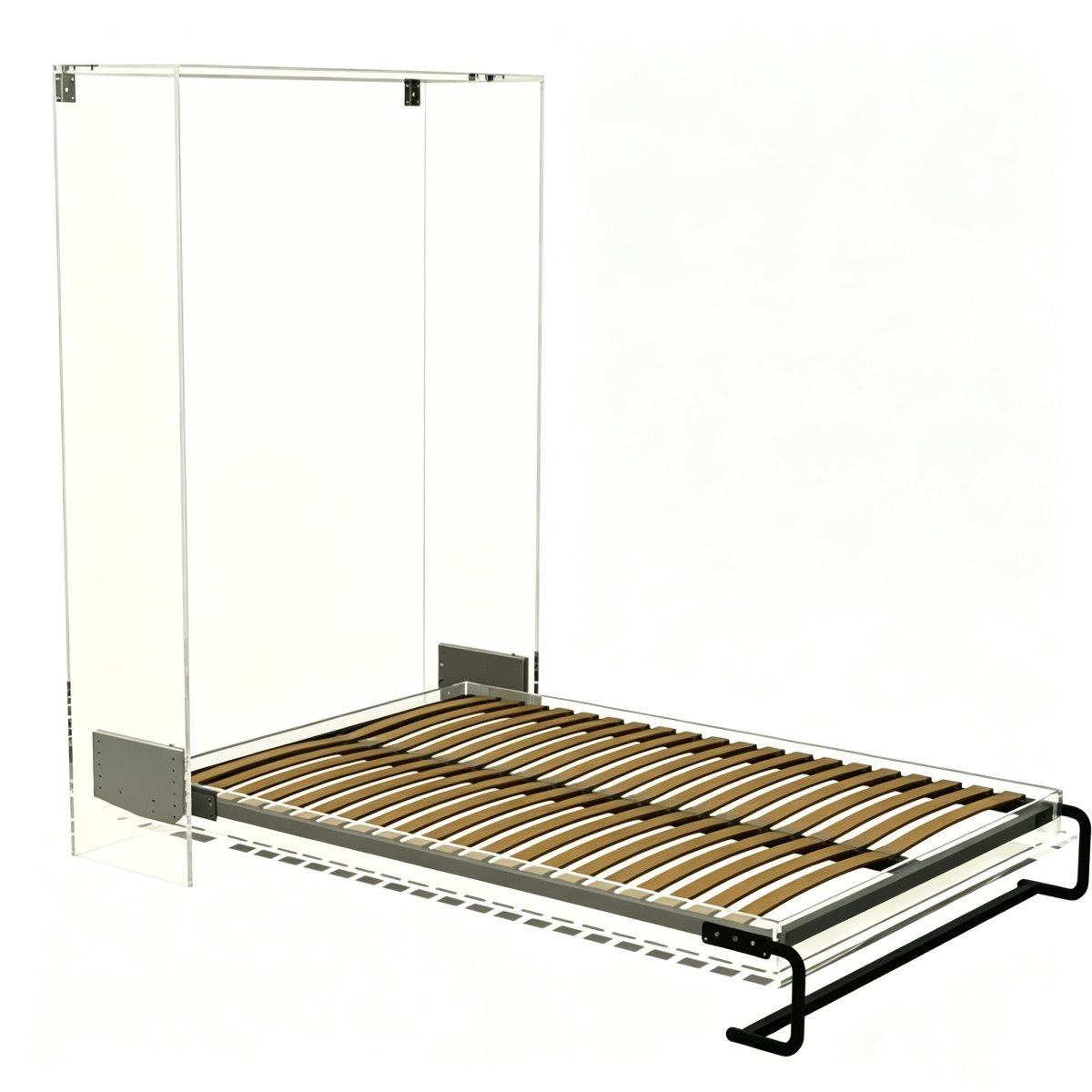

Vertical wall bed with foldable support legs Specifications
| Item | Specification |
| Product Name | Vertical Murphy Wall Bed Mechanism Frame |
| Frame Material | High-Strength Powder-Coated Steel |
| Slat Material | Flexible Birch / Poplar Plywood Slats |
| Lifting Mechanism | Heavy-Duty Gas Strut Pistons / Pivot Hinge Plates |
| Leg Mechanism | Integrated Flip-Down / Folding Support Legs |
| Available Sizes | Single, Twin, Full, Queen, King (Custom dimensions available) |
| Load Capacity | Up to 600–800 lbs (depending on size & piston rating) |
| Mounting Type | Cabinet / Wall Box Mounted |
| Color Finish | Matte Black Frame with Natural Wood Slats |
Product Details
Counterbalance Pistons:Industrial-grade hydraulic struts calibrated for smooth opening and slow, controlled lowering.
Pivoting Support Leg: U-shaped steel leg bar pivots automatically, providing stable floor contact when opened.
Wall Anchor Brackets: Top L-shaped bracket mounts securely anchor the cabinet structure to wall studs.
Flexible Slat Holders: High-density rubber caps lock individual slats securely to prevent sagging and noise.
Key Features of a Vertical wall bed with foldable support legs
Compact vertical folding design: The Murphy wall bed fits entirely within the wall-mounted unit, freeing up floor space for work, exercise, or relaxation during the day.
Self-deploying metal support legs:
sturdy front legs pivot smoothly to support the unit when lowered and retract when folded.
Gas-piston balancing mechanism: high-quality gas pistons counterbalance the weight, ensuring smooth, effortless opening and closing.
Ergonomic curved wooden slats: provide dynamic mattress support, promote spinal alignment, and ensure optimal ventilation—no box spring required.
Durable steel construction: features powder-coated steel rails and robust mounting plates for maximum stability and longevity.
Why choose a wall bed?
Maximize space utilization:
instantly expand a room's functionality by transforming a home office or gym into a bedroom for the night.
A cost-effective way to increase usable space: avoid the expense of renovations or moving by making the most of your existing living area.
A neat and stylish look: when Murphy bed folded up, the mattress and bedding are concealed within an elegant cabinet.
Benefits of wall beds
Maximum versatility: an ideal solution for studio apartments, guest rooms, rental properties, and home offices.
Full-sized bed comfort: unlike sofa beds, wall bed models feature real mattresses and slatted bases, ensuring optimal comfort for daily sleep.
Ease of use: thanks to a gas piston lifting mechanism, the murphy wall bed can be easily opened or closed with one hand in just a few seconds.
FAQ
Q1: Why choose a wall bed instead of a standard bed base?
A: When hidden wall bed folded up, a wall bed frees up to 80% of the floor space. It offers the comfort of a full-sized bed and optimal mattress support, making it an ideal solution for small spaces, multi-purpose guest rooms, and studio apartments.
Q2: How does the leg folding mechanism work?
A: The U-shaped front leg pivots to support the frame when the Murphy wall bed is lowered into use and folds neatly along the edge of the frame when the bed is stowed away in the cabinet.
Q3: Is it difficult to lift and lower the wall bed?
A: No. Gas struts are calibrated to counterbalance the weight of the wall bed frame and mattress, ensuring smooth, effortless operation—the bed can be raised or lowered with just one hand.
Q4: Does this system require a box spring?
A: No. Curved wooden slats provide reliable support for all standard mattress types, so no additional box spring is needed.
Q5: Is the cabinet included?
A: This Murphy wall bed is a complete kit comprising the hardware, mechanism, and slatted base. It is designed for installation into custom-made cabinets or cabinets purchased separately.
Q6: How is the mechanism secured for safety?
A: Heavy-duty mounting plates are screwed into the cabinet side panels, while top brackets securely anchor the unit to the wall's structural elements (studs) to prevent tipping.
Q7: Is there a risk of the mattress falling when the Murphy bed is moved to the vertical position?
A: No. Special securing straps or retainers firmly hold the mattress in place on the slatted base when the bed is in the vertical position.
Q8: Is it possible to place an OEM/ODM order (custom wall bed dimensions, specific gas strut specifications)?
A: Yes, we offer custom Murphy bed frame manufacturing: options for wall bed frame dimensions, steel finishes, and gas piston force (in Newtons), as well as bulk packaging for commercial projects.
